Primitive and Improved LPF

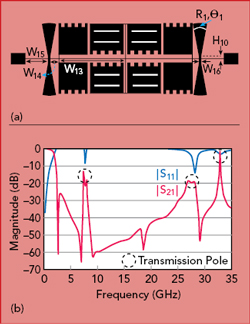

To increase the transition band sharpness, four radial stubs are added to the combined resonator (see Figure 8). The primitive LPF has a sharp transition band; however, the stopband is narrow. The physical dimensions of this structure (in mm) are: W13 = 6.73, W14 = 0.88, W15 = 2.33, W16 = 0.64, H10 = 0.25, R1 = 4.06 and θ1 = 20 degrees.

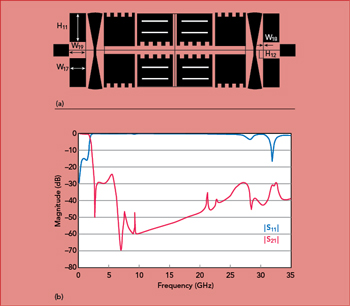

According to Figure 8b, the stopband is limited by transmission poles. To achieve a wider stopband, four open-circuited stubs are added as suppressing elements, producing several transmission zeros (see Figure 9). The circuit layout and EM simulation are shown in Figures 10a and 10b, respectively. This improved LPF has a high return loss, and the stopband is extended to more than 35 GHz. The physical dimensions (in mm) are: W17 = 1.5, W18 = 0.1, W19 = 1.52, H11 = 2.79 and H12 = 0.76.

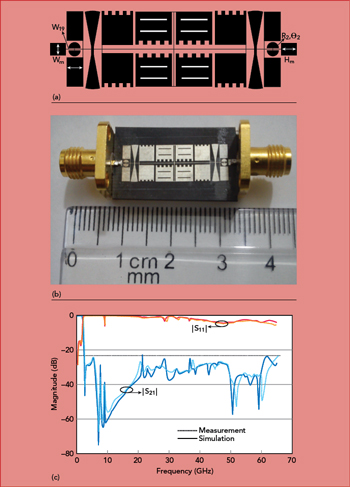

The final filter design employs four semi-circular stubs (see Figure 11). It has an ultra-wide stopband (2.38 to 65 GHz) with high attenuation (24 dB) up to the 34th harmonic. The physical dimensions (in mm) are: W19 = 0.69, Wm = 1.17, Hm = 1.5, R2 = 0.25 and θ2 = 180 degrees.
SIMULATION AND MEASUREMENT
The LPF was simulated using ADS software, fabricated on RT-Duroid 5880 (εr = 2.2, h = 0.381 mm, loss tangent = 0.0009) and tested with a Keysight 8757A network analyzer (see Figure 11c). It exhibits an ultra-wide stopband from 2.38 to 65 GHz, with 24 dB suppression up to the 34th harmonic. The final filter has a 3 dB cutoff frequency of 1.89 GHz and high return loss (14.8 dB) in the passband. Overall dimensions are only 17.7 mm x 7.5 mm (0.153λg x

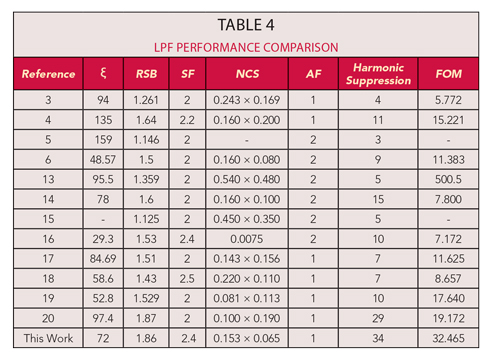

0.065λg). With these features, it is useful for wireless applications, according to the specifications listed by Hayati et al.17 This filter and other reported works are compared in Table 4. This filter has the widest stopband, the smallest size and the highest FOM.
In Table 4, the transition band sharpness (ξ) is defined as
where αmin and αmax are suppression points of −3 and −40 dB, respectively. fs is the frequency corresponding to αmax, and fc is the frequency corresponding to αmin. The relative stopband bandwidth (RSB) is
The suppressing factor (SF) is
The normalized circuit size (NCS) is
For 2D and 3D circuits, the architecture factor (AF) is defined as 1 and 2, respectively, and the FOM is
CONCLUSION
An ultra-wide rejection band LPF using symmetrical modified T-shaped and flag-shaped resonators has been manufactured and tested. The stopband width is 62.62 GHz (from 2.38 up to 65 GHz) with more than 24 dB suppression. This configuration has the best performance for harmonic suppression (from the second to 34th) and the smallest size compared to other recent work.
