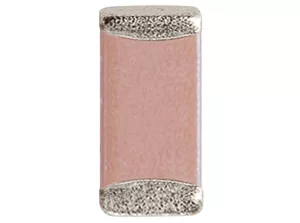

Passive Plus, Inc. (PPI) is now offering the 0708N (0.070 in x 0.080 in) series capacitor. These parts exhibit Low ESR/ESL, Low Noise, High Self-Resonance as well as ultra-stable performance over temperature. These capacitors are 100 percent RoHS compliant.
Usually used for wireless broadcasting equipment, mobile base stations, GPS, MRI and Radar applications and offered in magnetic and non-magnetic terminations.
Typical Functional Applications: Bypass, Coupling, Tuning, Impedance Matching, DC Blocking
Typical Circuit Applications: UHF/RF Power Amplifiers, Transmitters, Mixers, Oscillators, Low Noise Amplifiers, Filters
0708N Series Specifications:
- Size: 0.070 in x 0.080 in
- Value Range: 1 pF to 100 pF
- WVDC: 500 V
- TC: 0 +/- 30 PPM/°C (-55°C to +175°C)
Engineering Design Kits available. See the company's website for complete series information: www.passiveplus.com
