The R&S FSW85 signal and spectrum analyzer equipped with the R&S FSW-B5000 option provides 5 GHz analysis bandwidth.

Rohde & Schwarz is addressing the fast-growing demands for characterizing wideband components and systems by introducing the new R&S FSW-B5000 option. The R&S FSW85 signal and spectrum analyzer now provides 5 GHz analysis bandwidth, which is required for analyzing wideband signals such as automotive radar FMCW chirp signals, IEEE 802.11ay signals and 5G waveform candidates.

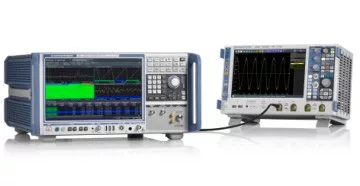

In combination with the R&S RTO2064 digital oscilloscope as an external digitizer, the R&S FSW85 signal and spectrum analyzer equipped with the new hardware option provides equalized 5 GHz signal analysis bandwidth. It will be demonstrated for the first time to the public from September 11 to 13, 2017, at EDI CON USA in Boston, MA.

The amplitude and phase response of the R&S FSW85 together with the R&S FSW-B5000 are fully characterized at the factory across the entire frequency range. The amplitude and phase measurement accuracy are guaranteed throughout the measurement bandwidth. The R&S FSW-B5000 supports center frequencies between 9.5 GHz and 90 GHz. For frequencies above 85 GHz, the R&S FSW85 needs to be equipped with the R&S FSW-B90G option, which extends the frequency range up to 90 GHz.

The transient and pulse measurement applications for the R&S FSW allow in-depth, wideband analysis of FMCW chirp signals and hopped and pulsed radar signals required for automotive radar applications. The R&S FSW-B5000 option also makes it possible to capture IEEE 802.11ay wideband signals for post processing and to perform measurements on waveform candidates for the future 5G standard.
